Transformatory bezpieczeństwa typu SUS

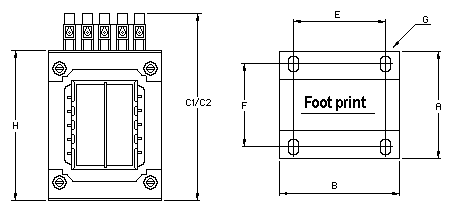

Wymiary
| Typ | A (mm) | B (mm) | C1 (mm) | C2 (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Waga (kg) | (C*) |
| SUS60A | 47 | 50 | 87 | 92 | 38 | 36 | 3,6x7,0 | 65 | 0,6 |
| SUS66A | 49 | 55 | 96 | 101 | 44 | 38 | 3,6x7,0 | 74 | 0,7 |
| SUS66B | 61 | 55 | 96 | 101 | 44 | 50 | 3,6x7,0 | 74 | 1,0 |
| SUS78A | 58 | 65 | 108 | 113 | 50 | 45 | 4,8x9,0 | 86 | 1,2 |
| SUS78B | 67 | 65 | 108 | 113 | 50 | 54 | 4,8x9,0 | 86 | 1,5 |
| SUS84B | 75 | 70 | 113 | 118 | 50 | 61 | 4,8x9,0 | 91 | 1,9 |
| SUS96B | 80 | 80 | 124 | 129 | 56 | 63 | 4,8x9,0 | 102 | 2,8 |
| SUS96C | 94 | 80 | 124 | 129 | 56 | 77 | 4,8x9,0 | 102 | 3,5 |
| SUS120A | 88 | 100 | 150 | 155 | 84 | 66 | 5,8x11,0 | 128 | 4,3 |
| SUS120B | 100 | 100 | 150 | 155 | 84 | 78 | 5,8x11,0 | 128 | 5,1 |
| SUS120C | 120 | 100 | 150 | 155 | 84 | 98 | 5,8x11,0 | 128 | 6,6 |
| SUS150A | 107 | 125 | 182 | 187 | 90 | 78 | 5,8x11,0 | 160 | 7,9 |
| SUS150B | 124 | 125 | 182 | 187 | 90 | 95 | 5,8x11,0 | 160 | 9,9 |
| SUS150C | 150 | 125 | 182 | 187 | 90 | 121 | 5,8x11,0 | 160 | 13,3 |
| SUS174B | 148 | 145 | 205 | 210 | 122 | 116 | 7,0x13,0 | 183 | 14,7 |
| SUS174C | 168 | 145 | 205 | 210 | 122 | 136 | 7,0x13,0 | 183 | 19,9 |
- C1 - wymiar z kostką zaciskową 4 mm2
- C2 - wymiar z kostką zaciskową 16 mm2
(karta nr 2208)
