| Opis | Wymiary | Układ połączeń | Program standardowy | Cennik |
Wymiary

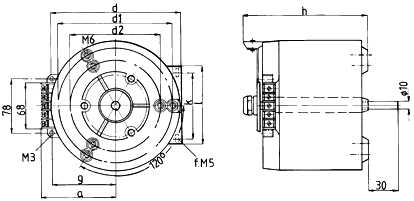

Rys 1
Rys 2
Rys 3
Rys 4 |
| Typ | a | d | g | h | k | l | rys. nr |
| 230/0-230V | |||||||
| RV230/1,6 | 55 | 88 | 43 | 77 | - | - | 1 |
| RV230/4 | 62 | 106 | 55 | 93 | - | - | 1 |
| RV230/6,3 | 72 | 125 | 55 | 130 | 66 | 82 | 2 |
| RV230/10 | 83 | 148 | 76 | 122 | 76 | 92 | 2 |
| R230/18 | 95 | 225 | - | 160 | - | - | 3 |
| R230/25 | 130 | 300 | - | 150 | - | - | 4 |
| 230/0-260V | |||||||
| RV260/1,6 | 55 | 88 | 43 | 82 | - | - | 1 |
| RV260/4,5 | 72 | 125 | 55 | 130 | 66 | 82 | 2 |
| RV260/8 | 83 | 148 | 76 | 122 | 76 | 92 | 2 |
| R260/15 | 95 | 225 | - | 160 | - | - | 3 |
| R260/20 | 130 | 300 | - | 150 | - | - | 4 |
