Zawory Christian Bollin - rozdzielacze 30
30
DN: max 5 (8)
PN max. 420 (6000psi)
T max 250 ° C
(Ma T 530 ° C z zewnętrznym gwintem )
Trzydrożny zawór z połączonym punktem zerowym. Najczęściej do czujnika
różnicy ciśnień. |

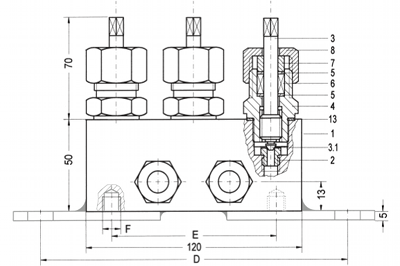

parts list
| part no. |
designation |
material |
| 1 |
2 |
3
|
| 1 |
body |
A105 |
316Ti |
A182-F11;F12 |
| 2 |
interchangeable |
430F |
316Ti |
| 3 |
spindle roll sealed |
430F |
316Ti |
| 3.1 |
cone, rolled into, movable |
SS |
316Ti |
| 4 |
screwed bonnet housing |
1035 |
316Ti |
A182-F11;F12 |
| 5 |
scraper ring |
Novapress |
| 6 |
packing |
graphite1) |
PTFE2) |
| 7 |
gland |
1213 |
316Ti |
316Ti |
| 8 |
union nut |
1213 |
316Ti |
303 |
| 13 |
seal |
mild steel |
316Ti |
| V |
30 |
|
|
| type |
body number |
material code |
|
| V=manifold |
|
1 Mat.: carbon steel A105
2 Mat.: stainless steel 316Ti
3 Mat.: heat resistant steel A182-F 11; F 12 |
A external spindle thread
B fastening female thread
F bellow
L bracket
PT german TA-Luft
|
